I-Industrial Panel PC Manufacturer
Isungulwe e-Guangzhou, i-Guangzhou Jorarri Electronics Co., Ltd. izimise njengomsunguli ohamba phambili ezisombululweni zezimboni, egxile kakhulu ku-Industrial Panel Pc.
-
![Isikrini sokuthinta i-PC Industrial]()
Isikrini sokuthinta i-PC Industrial-13.3 15.6 18.5 21.5 23.6 27 iyintshi-windows/Android/Linux{2}}intel J6412/J4125/i3/i5/i7 processor-10 points touch{10}}Fanless design-Capacitive Touch Panel (G+G) -
![Konke ku-One PC Touch Screen]()
Konke ku-One PC Touch Screen-10.4 intshi 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux{13}}intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G) -
![7 Intshi Panel Pc]()
7 Intshi Panel Pc-7/8/10.1/10.4/12.1/13.3/15/15.6/17/19/21.5 Intshi. -Intel J6412/J1900/i3/i5/i7 processor. -I-Windows/Android/Linux. -Ukukhanya okuphezulu Okuzikhethela. -10 amaphuzu touch. -Iphaneli ye-Capacitive -
![I-1000 Nits High Brightness Industrial Panel Pc]()
I-1000 Nits High Brightness Industrial Panel Pc-12.1 15 15.6 17 19 21.5 Intshi. -1000 nits ukukhanya okuphezulu kwangaphandle. -I-Windows/Android/Linux. -intel J6412/J4125/i3/i5/i7 processor. -10 amaphuzu touch. -Iphaneli ye-Capacitive Touch -
![10.4 Intshi Iphaneli Yezimboni I-PC]()
10.4 Intshi Iphaneli Yezimboni I-PC-10.4 intshi 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux{13}}intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G) -
![27 Intshi Iphaneli Yezimboni PC]()
27 Intshi Iphaneli Yezimboni PC-13.3 15.6 18.5 21.5 23.6 27 iyintshi-windows/Android/Linux{2}}intel J6412/J4125/i3/i5/i7 processor-10 points touch{10}}Fanless design-Capacitive Touch Panel (G+G) -
![21.5 Intshi Iphaneli Yezimboni I-PC Rugged]()
21.5 Intshi Iphaneli Yezimboni I-PC Rugged-13.3 15.6 18.5 21.5 23.6 27 iyintshi-windows/Android/Linux{2}}intel J6412/J4125/i3/i5/i7 processor-10 points touch{10}}Fanless design-Capacitive Touch Panel (G+G) -
![15.6 I-Industrial Panel Mounted Touch Screen PC]()
15.6 I-Industrial Panel Mounted Touch Screen PC-13.3 15.6 18.5 21.5 23.6 27 iyintshi-windows/Android/Linux{2}}intel J6412/J4125/i3/i5/i7 processor-10 points touch{10}}Fanless design-Capacitive Touch Panel (G+G) -
![I-13.3 Intshi Yephaneli Yezimboni Yezimboni]()
I-13.3 Intshi Yephaneli Yezimboni Yezimboni-13.3 15.6 18.5 21.5 23.6 27 iyintshi-amawindi/Android/Linux{2}}intel J6412/J4125/i3/i5/i7 processor-10 points touch{10}}Fanless design-Capacitive Touch Panel (G+G) -
![I-19 Intshi ye-Industrial Touch Panel PC]()
I-19 Intshi ye-Industrial Touch Panel PC-10.4 intshi 12.1 intshi 15 inch 17 inch 19 inch-windows/Android/Linux{13}}intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G) -

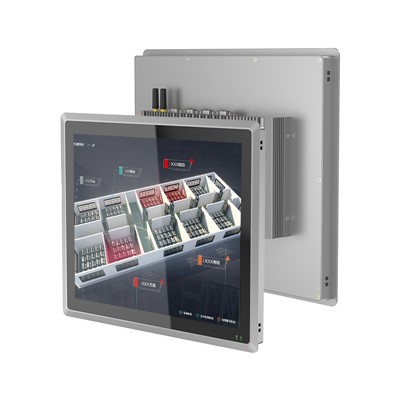

![17 Intshi Industrie Panel PC]()
17 Intshi Industrie Panel PC-10.4 intshi 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux{13}}intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G) -
![15 Intshi Industrial Panel Mount PC]()
15 Intshi Industrial Panel Mount PC-10.4 intshi 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux{13}}intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G)
Kungani ukhethe thina
OEM/ODM
Amakhono ethu okukhiqiza asenza sikwazi ukugcina ukulawula kwekhwalithi okuqinile kuyilapho sisekela kokubili{0}}ukukhiqizwa kwevolumu ephezulu kanye namaphrojekthi enziwe ngokwezifiso e-OEM/ODM. Le ndlela ehlanganisiwe iqinisekisa ukuthi wonke umkhiqizo uhlangabezana nezindinganiso zethu eziqinile zokusebenza nokuqina.
Izitifiketi Zethu
I-Guangzhou Jorarri Electronics Co., Ltd. inezitifiketi zamazwe ngamazwe eziphelele, ezihlanganisa i-BIS, ISO 9001, CE, FCC, RoHS, EMC Directive kanye ne-LVD.
Ukuqinisekisa ikhwalithi
Iwaranti yamahhala yonyaka owodwa{{0}kuyo yonke imikhiqizo.
Izinhlelo zewaranti ezinwetshiwe ozikhethela zona ziyatholakala (iminyaka emi-3-5).
Inkonzo Yethu
Ochwepheshe bethu bezobuchwepheshe banikeza isiqondiso sochwepheshe ukuze basize amaklayenti akhethe i-pc yephaneli yezimboni efaneleke kakhulu, iphaneli esebenzisanayo kanye nezixazululo zezimpawu zedijithali ezisekelwe kwizidingo ezithile zohlelo lokusebenza.
|
I-Touch Screen Industrial PC |
SK-K10DR |
SK-K12DR |
SK-K15DR |
SK-K17DR |
SK-K19DR |
|
|
Ibhodi lomama |
Ukuqinisekisa |
J6412, J4125, i3, i5, i7 |
||||
|
Isixhumi esibonakalayo |
I-WiFi, imojuli ye-3/4G |
802.11b/g/n(ongakukhetha), I-Support3g/4g(kuyakhetheka) |
||||
|
I-HDMI |
1*I-HDMI okukhiphayo |
|||||
|
I-USB |
4*USB3.0 |
|||||
|
Inethiwekhi |
2*RJ45 ene-1000 Base-T |
|||||
|
Com |
com(RS485)*2 |
|||||
|
Ukunikezwa kwamandla kagesi |
Itheminali engu-1* yokukhiya i-phoenix, Isekela i-9-36V |
|||||
|
Okukhipha umsindo |
1*3.5ummaudiyo |
|||||
|
Okunye |
8*GPIO(uyazikhethela) |
|||||
|
Bonisa |
Uhlobo lwesikrini |
10.4 LCD |
12.1 LCD |
15 LCD |
17 LCD |
19 LCD |
|
Isixazululo |
1024*768 |
1024*768 |
1024*768 |
1280*1024 |
1280*1024 |
|
|
Usayizi(W*H) |
212.3*159.5mm |
246*184.5mm |
304.1*228 mm |
338.92*271.34mm |
377.32*302.06mm |
|
|
Isilinganiso sokuqhathanisa |
500:1 |
500:1 |
700:1 |
900:1 |
900:1 |
|
|
Ukukhanya |
250cdm2 |
250cdm2 |
250cdm2 |
250cdm2 |
250cdm2 |
|
|
Ukukhanya Okuzikhethela |
1000cdm2 |
1000cdm2 |
1000cdm2 |
1000cdm2 |
1000cdm2 |
|
|
Isilinganiso sesikrini |
4:3 |
4:3 |
4:3 |
5:4 |
5:4 |
|
|
Isakhiwo |
Ikhava yangaphambili nangemuva |
I-Aluminium |
||||
|
Ubuciko |
Ukunamathisela kozimele wengilazi, i-aluminium die casting |
|||||
|
Umbala |
Okumnyama, okumpunga |
|||||
|
Ukushisa kokushisa |
Ukushisa kwe-aluminium engena-feni |
|||||
|
Isibani senkomba yephaneli |
Isimo samandla, isimo se-hard disk |
|||||
|
Usayizi ophelele |
281*228*67.2mm |
314.9*253.7*67.2mm |
370*294*68.2mm |
404*341*69.2mm |
445*375*72.2mm |
|
|
Isikrini sokuthinta |
Uhlobo |
Isikrini sokuthinta esicatshangelwayo esinamandla |
||||
|
Iphoyinti lokuthinta |
10 amaphuzu ukuthinta |
|||||
|
Ukulungiswa Okungokomzimba |
4096x4096 |
|||||
|
Isikhathi sokuphendula |
<5ms |
|||||
|
Ukunemba |
<2.5mm |
|||||
|
Ukungafihli |
Kukhulu noma kulingana no-90% |
|||||
|
Ukuvikelwa |
Ubuso bumbozwe ngefilimu yokuvikela ye-PVC engu-1: 1 |
|||||
|
Abanye |
Indawo yokusebenza |
-20 degrees ~ 70 degrees; Ukuswakama: 10%~90% |
||||
|
Indawo yesitoreji |
Ukushisa: -40℃~ 80℃; Ukuswakama: 10%~90% |
|||||
|
Izindlela zokufaka |
Kushumekiwe,VESA100*100mm |
|||||
|
Ukusetshenziswa kwamandla |
24W |
25W |
33W |
34W |
37W |
|
|
Izesekeli |
Imanuwali |
Incwadi Yomsebenzisi, isitifiketi sokufaneleka, ikhadi lewaranti |
||||
|
Ubakaki |
Abakaki abafakwe odongeni, abakaki abashumekiwe, abakaki bedeskithophu(uyazikhethela) |
|||||
|
I-adaptha |
I-adaptha yamandla |
|||||
Izinzuzo ze-Industrial Panel PC
Angasetshenziswa noma kuphi
Njengoba ziyiphaneli elilula, zidinga kuphela indawo yokuzifaka (isb. ukukhwezwa kwe-VESA).
Ziqinile futhi ziqinile
Zenzelwe ngokukhethekile izindawo zezimboni i-PC yomdabu engakwazi ukuphila, njengoba zingenafeni futhi zakhiwe ngezinga eliphezulu lokuvikelwa kwe-IP.
Iyasebenza futhi iyahambisana
Ngenxa yokwakheka kwazo (ukuqina, usayizi, izimbobo kanye nesikrini esithintwayo) zingena kunoma iyiphi indawo yezimboni lapho kudingeka khona i-PC.
Okuqondiswe kwikusasa-
Ngenxa yamakhompiyutha, imboni iya ngokuya isebenza ngempumelelo. Imboni esebenzisa amakhompyutha ivulekele ubuchwepheshe obusha ukuze ithuthukise ukusebenziseka, ikhwalithi yomkhiqizo nokusebenza kahle.
Ukusetshenziswa kwe-Industrial Panel PC
Imboni yokukhiqiza
Ezitshalweni zokukhiqiza, zisetshenziselwa ukulawula imishini nezinqubo.
01
Logistics kanye warehousing
Basiza ukuphatha i-inventory kanye nokuthuthukisa izinqubo ze-logistics.
02
Imishini yezokwelapha
Kwezokwelapha, asetshenziswa ezinqubweni zokuthwebula izithombe kanye nezinhlelo zokuqapha isiguli.
03
Imboni yokudla
Ekukhiqizeni ukudla, baqinisekisa ukuhambisana nezindinganiso zekhwalithi kanye nokulandelelwa kwezinqubo zokukhiqiza.
04
Amandla nezinsiza
Zisetshenziswa ezinhlelweni zokuqapha nokulawula ukuze kuqinisekiswe ukusebenza kahle kwezitshalo zamandla.
05
☆ Izimo Zemvelo (Isilinganiso se-IP, izinga lokushisa)
☆ Amandla Okucubungula (CPU, RAM, isitoreji)
☆ Izidingo Zokubonisa (usayizi, ukulungiswa, ukufundeka kwelanga)
☆ Izinketho Zokuxhumana (amachweba we-serial, i-GPIO, amamojula angenawaya)
☆ Izitifiketi (CE, UL, ATEX ezindaweni eziyingozi)
Ukupakisha Imininingwane
Sizopakisha ngokupakisha okuthekelisa okuchwepheshile, ukuphepha ekuqhekekeni, ekugcineni singene emacaleni okhuni/ibhokisi/iphalethi noma iphakethe elenziwe ngokwezifiso.
Imininingwane Yokulethwa
Singaletha ngo-SEA, ngendiza, ngezokuthutha ngesitimela, nge-China-i-Europe Railway Express njll.
TNT, DHL, UPS, FEDEX, EMS,SF EXPRESS njll.
FAQ
Singabanye abakhiqizi nabahlinzeki be-PC yephaneli yezimboni abanokwethenjelwa kakhulu e-China, abakhethekile ekuhlinzekeni ngenkonzo eyenziwe ngezifiso yekhwalithi ephezulu. Sikwamukela ngokufudumele ku-PC{1}yezinga eliphezulu lezimboni ngentengo encintisanayo evela efekthri yethu.
