Imininingwane

	Imingcele eyisisekelo
Usayizi wesikrini/intshi	13.3	15.6	18.5	21	23.6	27
Isixazululo	1920*1080

	Isikali sesikrini	16:9 (H:V)
	Ukukhanya	250 cd/m² /1000 nits ngokuzithandela
	Isilinganiso sokuqhathanisa	1200 : 1	3000 : 1	1200 : 1
	Bonisa umbala	262K/16.7M
	Isikhathi sokusabela	16 (Uhlobo)(Tr+Td) ms
	I-engeli yokubuka	85/85/85/85 (Uhlobo.)(CR Ikhulu noma ilingana no-10)
Ubukhulu bangaphandle	346.4224.458.8mm	400.4254.458.7mm	462.4286.458.73mm	526.9322.464mm	578.9353.965.9mm	663.9402.964.9mm
	Usayizi wokuvula onconyiwe	327*201mm	377*227mm	443.8*263.8mm	509.3*300.8mm	560.1*331.1mm	644.1*379.1mm
	Uhlobo lokuthinta	I-G+G inamandla
	Indawo yokusebenza	0℃-50℃(10-90%non-condensing)
	Indawo yesitoreji	-20℃-70℃(10-90%non-condensing)
	Imininingwane Yamandla	DC:12V
		I-DC:9-36V(ongakukhetha)
Material\\ Craft	Isakhiwo sephrofayili ye-aluminium, ikhava yangemuva yephrofayili ye-aluminium
	Umbala	Okumnyama + Okumpunga
	Ukucushwa komsingathi
	Ibhodi eliyinhloko	DB02 uchungechunge ibhodi main yezimboni
	Iphrosesa	Intel J6412, J4125, J1900, I3/I5/I7 ngokuzithandela
		I-Intel (I3/I5/I7) 10 ngokuzikhethela
Inkundla	I-Kaby Lake/I-Comet Lake
	Inkumbulo	4G/8G/16G/32G ngokuzithandela
	Umthamo we-hard disk	128G/256G/512G ngokuzithandela
	Ikhadi lezithombe	Ikhadi lemifanekiso elihlanganisiwe
	I-BIOS	I-AMI UEFI BIOS
	Isistimu esebenzayo	Android/Windows/Linux
	Isixhumi esibonakalayo
Amandla e-DC	1*DC IN 2PIN itheminali yasePhoenix
	I-HDMI	1*I-HDMI OUT
	I-USB	2USB3.0,2USB2.0
	COM	2*DB9-RS232/RS485(isignali uyazikhethela)
4*DB9-RS232( uma uthanda)
		I-LAN	1*RJ45
	2*RJ45( uma uthanda)
I-Sim card module	I-4G module (ongakukhetha)
	I-5G module (ongakukhetha)
I-WIFI	2.4G/5.0G/bluetooth(uyazikhethela)
Umsindo	1 * Umsindo 2-in-1
	(Okukhiphayo komsindo + okokufaka kwezwi kwemakrofoni)

I-Industrial Panel PC: Isixazululo Sekhompiyutha Esiqinile Esingena-Fanless Sezindawo Eziqinile Zezimboni

I-Industrial-Ibanga Eliqinile Eliqinile

Ukuvikelwa kwe-IP65+, -u-20℃~55℃ukubekezelela izinga lokushisa elibanzi, kanye nomklamo ovimbela ukudlidliza uqinisekisa ukusebenza okuzinzile okungu-24/7 ezindaweni zasembonini ezinonya.

-Umongo Wokucubungula Ukusebenza Okuphezulu

Ifakwe ama-Intel CPUs, ihlinzeka ngemisebenzi eminingi esheshayo, ethembekile ukusekela ngaphandle komthungo okuzenzakalelayo kwemboni, ukuqapha, nokulawula izinhlelo.

Ukuvumelana Okuvumelana nezimo nokunwebeka

Kwenzelwe isofthiwe yezimboni nama-peripherals, afaka i-interface ye-I/O ecebile nezingxenye ezingathuthukiswa ukuze zivumelane nezimo ezivumelana nezidingo zokuhamba komsebenzi ezihlukahlukene.

Iletha usekelo lokuphakelwa kwamandla echwebeni lase-Phoenix lokudluliswa kwamandla okungaguquki, okuthembekile{0}}okuqondisa kabusha ukusethwa kwezintambo nokuvikela ukusebenza okungaphazamiseki kwe-PC yephaneli yezimboni, ngisho nasezimweni ezinzima kakhulu.

Ifika ifakwe ububanzi obuvumelana nezimo: DC (12V, 9-36V), HDMI, izimbobo ezimbili ze-COM, 2× USB 3.0, izimbobo ezimbili ze-LAN, ne-AUDIO. Izixazululo ze-interface ezifanisiwe zinikezwa ukunika amandla ukuxhumeka kwe-peripheral okushelelayo, ukuhlangabezana nezimfuneko zezimo ezihlukahlukene zezicelo zezimboni.

Imelana namazinga okushisa adlulele ukusuka -ku-20℃kuya ku-55 degree, ibekezelela kalula amakhaza kanye nokushisa okushisayo. Izinketho zesixhumi esibonakalayo ezenziwe ngendlela oyifisayo zinikezwa, zivikela ukusebenza okungami, okuthembekile kokusebenza kwezimboni kumafekthri angalawulwa noma ezindaweni ezingaphandle.

10-iphoyinti lokuthinta i-capacitive nokusabela okukhethekile kuvumela okuningi{2}}ukuthinta ukuthinta okunembile, ukuthepha okushesha, nokuswayipha okuwuketshezi{3}}okuletha umsebenzi osebenziseka kalula ukuze kuthuthukiswe ukusebenza kahle kokusebenza kwezimboni.

Ifaka isilinganiso se-IP65 esingangeni manzi futhi singangenisi uthuli, sigweme ukuchaphazeka kwamanzi, uthuli, nokungcola{1}}ivikela ukusebenza okungaguquki kwamaphaneli e-industrial PC kuzilungiselelo zefekthri ezinokhahlo noma amasayithi ezimboni angaphandle.

Ifika ifakwe i-ESD eqinile (i-anti-static) ne-EMI (i-anti-i-electromagnetic interference) yokuvikela. Igcina ukusebenza okuzinzile phakathi kokuphazamiseka kukagesi wezimboni, ivikela ukunemba kwedatha nokwethenjwa kwesistimu.

Yakhiwe -ngegobolondo le-aluminium eligcwele{1}nemojuli yokupholisa yekhava yangemuva ephezulu{1}. Inika amandla ukusabalalisa ukushisa okusheshayo, igcine ukusebenza okuzinzile okungaphazamiseki ekusetshenzisweni kwezimboni ezindaweni ezinzima, eziyinselele.

Isebenzisa-ucezu olulodwa oluhlanganisiwe lwegobolondo le-aluminium egcwele{1}}eliletha ukuqina okuvelele kwesakhiwo, -ukuqina kokugqwala, nokubekezelela ukuphela kokucwebezelayo, olufanele{3}}uhlelo lokusebenza lwesikhathi eside lwemboni olunokwakhiwa{4}}okuphakeme, okumazombezombe.

Izinketho ze-OS ezenziwe ngokwezifiso ozikhethela: Android, Windows 10/11, noma i-Linux. Izici ezisekelwayo azifaki imfuneko ye-ROOT, ukwethulwa kohlelo lokusebenza okuzenzakalelayo, ukwenza ilogo kube ngokwakho, namandla engeziwe.

10a

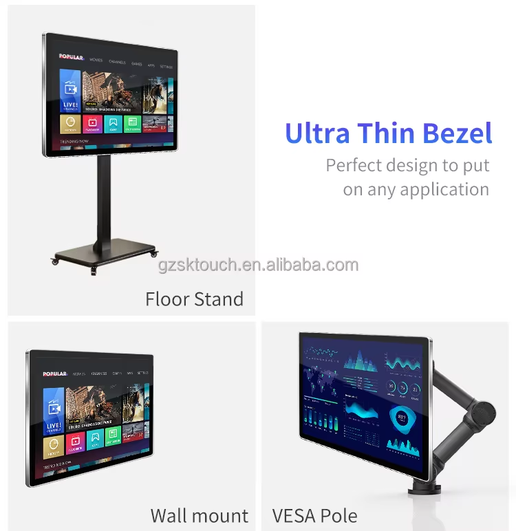

I-Industrial Panel PC inikezela ngezinketho ezintathu zokukhweza eziguquguqukayo: udonga-okukhweziwe,{1}}okumile, kanye nokufaka imbobo ye-VESA. Ivumelana kalula nezimo ezihlukene zezimboni, yenza kube lula ukufakwa nokusetshenziswa kwendawo okusebenzayo.

10c
