Imininingwane
|
Imingcele eyisisekelo |
|||||||
|
Usayizi wesikrini/intshi |
13.3 |
15.6 |
18.5 |
21 |
23.6 |
27 |
|
|
Isixazululo |
1920*1080 |
||||||
|
Isikali sesikrini |
16:9 (H:V) |
||||||
|
Ukukhanya |
250 cd/m² /1000 nits ngokuzithandela |
||||||
|
Isilinganiso sokuqhathanisa |
1200 : 1 |
3000 : 1 |
1200 : 1 |
||||
|
Bonisa umbala |
262K/16.7M |
||||||
|
Isikhathi sokusabela |
16 (Uhlobo)(Tr+Td) ms |
||||||
|
I-engeli yokubuka |
85/85/85/85 (Uhlobo.)(CR Ikhulu noma ilingana no-10) |
||||||
|
Ubukhulu bangaphandle |
346.4*224.4*58.8mm |
400.4*254.4*58.7mm |
462.4*286.4*58.73mm |
526.9*322.4*64mm |
578.9*353.9*65.9mm |
663.9*402.9*64.9mm |
|
|
Usayizi wokuvula onconyiwe |
327*201mm |
377*227mm |
443.8*263.8mm |
509.3*300.8mm |
560.1*331.1mm |
644.1*379.1mm |
|
|
Uhlobo lokuthinta |
I-G+G inamandla |
||||||
|
Indawo yokusebenza |
0℃-50℃(10-90%non-condensing) |
||||||
|
Indawo yesitoreji |
-20℃-70℃(10-90%non-condensing) |
||||||
|
Imininingwane Yamandla |
DC:12V |
||||||
|
I-DC:9-36V(ongakukhetha) |
|||||||
|
Material\\ Craft |
Isakhiwo sephrofayili ye-aluminium, ikhava yangemuva yephrofayili ye-aluminium |
||||||
|
Umbala |
Okumnyama + Okumpunga |
||||||
|
Ukucushwa komsingathi |
|||||||
|
Ibhodi eliyinhloko |
DB02 uchungechunge ibhodi main yezimboni |
||||||
|
Iphrosesa |
Intel J6412, J4125, J1900, I3/I5/I7 ngokuzithandela |
||||||
|
I-Intel (I3/I5/I7) 10 ngokuzikhethela |
|||||||
|
Inkundla |
I-Kaby Lake/I-Comet Lake |
||||||
|
Inkumbulo |
4G/8G/16G/32G ngokuzithandela |
||||||
|
Umthamo we-hard disk |
128G/256G/512G ngokuzithandela |
||||||
|
Ikhadi lezithombe |
Ikhadi lemifanekiso elihlanganisiwe |
||||||
|
I-BIOS |
I-AMI UEFI BIOS |
||||||
|
Isistimu esebenzayo |
Android/Windows/Linux |
||||||
|
Isixhumi esibonakalayo |
|||||||
|
Amandla e-DC |
1*DC IN 2PIN itheminali yasePhoenix |
||||||
|
I-HDMI |
1*I-HDMI OUT |
||||||
|
I-USB |
2*USB3.0,2*USB2.0 |
||||||
|
COM |
2*DB9-RS232/RS485(isignali uyazikhethela) |
||||||
|
4*DB9-RS232( uma uthanda) |
|||||||
|
I-LAN |
1*RJ45 |
||||||
|
2*RJ45( uma uthanda) |
|||||||
|
I-Sim card module |
I-4G module (ongakukhetha) |
||||||
|
I-5G module (ongakukhetha) |
|||||||
|
I-WIFI |
2.4G/5.0G/bluetooth(uyazikhethela) |
||||||
|
Umsindo |
1 * Umsindo 2-in-1 |
||||||
|
(Okukhiphayo komsindo + okokufaka kwezwi kwemakrofoni) |
|||||||

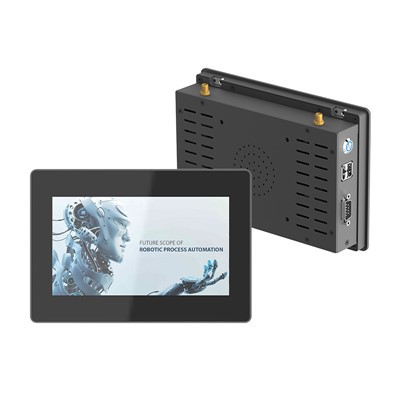

I-Industrial Panel PC: Isixazululo Esiqinile Sekhompiyutha Esingena-Fanless Sezindawo Eziqinile Zezimboni
01
I-Industrial-Ibanga Eliqinile Eliqinile
Ukuvikelwa kwe-IP65+, -u-20℃~55℃ukubekezelela izinga lokushisa elibanzi, kanye nomklamo ovimbela ukudlidliza uqinisekisa ukusebenza okuzinzile okungu-24/7 ezindaweni zasembonini ezinonya.
02
-Umongo Wokucubungula Ukusebenza Okuphezulu
Ifakwe ama-Intel CPUs, ihlinzeka ngemisebenzi eminingi esheshayo, ethembekile ukusekela ngaphandle komthungo okuzenzakalelayo kwemboni, ukuqapha, nokulawula izinhlelo.
03
Ukuvumelana Okuvumelana nezimo nokunwebeka
Kwenzelwe isofthiwe yezimboni nama-peripherals, afaka i-interface ye-I/O ecebile nezingxenye ezingathuthukiswa ukuze zivumelane nezimo ezivumelana nezidingo zokuhamba komsebenzi ezihlukahlukene.
Ilethela usekelo lokuphakelwa kwamandla embobo ye-Phoenix yokudluliswa kwamandla okungaguquki, okuthembekile{0}}okulungisa ukusethwa kwezintambo nokuvikela ukusebenza okungaphazamiseki kwephaneli ye-PC yezimboni, ngisho nasezimweni ezinzima kakhulu.
Ifika ifakwe ububanzi obuvumelana nezimo: DC (12V, 9-36V), HDMI, izimbobo ezimbili ze-COM, 2× USB 3.0, izimbobo ezimbili ze-LAN, ne-AUDIO. Izixazululo ze-interface ezifanisiwe zinikezwa ukunika amandla ukuxhumeka kwe-peripheral okushelelayo, ukuhlangabezana nezimfuneko zezimo ezihlukahlukene zezicelo zezimboni.
Imelana namazinga okushisa adlulele ukusuka -ku-20℃kuya ku-55 degree, ibekezelela kalula amakhaza kanye nokushisa okushisayo. Izinketho zesixhumi esibonakalayo ezenziwe ngendlela oyifisayo zinikezwa, zivikela ukusebenza okungami, okuthembekile kokusebenza kwezimboni kumafekthri angalawulwa noma ezindaweni ezingaphandle.
10-iphoyinti lokuthinta i-capacitive nokusabela okukhethekile kuvumela okuningi{2}}ukuthinta ukuthinta okunembile, ukuthepha okushesha, nokuswayipha okuwuketshezi{3}}okuletha umsebenzi osebenziseka kalula ukuze kuthuthukiswe ukusebenza kahle kokusebenza kwezimboni.
Ifaka isilinganiso se-IP65 esingangeni manzi futhi singangenisi uthuli, sigweme ukuchaphazeka kwamanzi, uthuli, nokungcola{1}}ivikela ukusebenza okungaguquki kwamaphaneli e-Industrial PC kuzilungiselelo zefekthri ezinokhahlo noma amasayithi ezimboni angaphandle.
Ifika ifakwe i-ESD eqinile (i-anti-static) ne-EMI (i-anti-i-electromagnetic interference) isivikelo. Igcina ukusebenza okuzinzile phakathi kokuphazamiseka kukagesi wezimboni, ivikela ukunemba kwedatha nokwethenjwa kwesistimu.
Yakhiwe -ngegobolondo le-aluminium eligcwele{1}nemojuli yokupholisa yekhava yangemuva ephezulu{1}. Inika amandla ukusabalalisa ukushisa okusheshayo, igcine ukusebenza okuzinzile okungaphazamiseki ekusetshenzisweni kwezimboni ezindaweni ezinzima, eziyinselele.
Isebenzisa-ucezu olulodwa oluhlanganisiwe lwegobolondo le-aluminium egcwele{1}}eliletha ukuqina okuvelele kwesakhiwo, -ukuqina kokugqwala, nokubekezelela ukuphela kokucwebezelayo, olufanele{3}}uhlelo lokusebenza lwesikhathi eside lwemboni olunokwakhiwa{4}}okuphakeme, okumazombezombe.
Izinketho ze-OS ezenziwe ngokwezifiso ozikhethela: Android, Windows 10/11, noma i-Linux. Izici ezisekelwayo azifaki imfuneko ye-ROOT, ukwethulwa kohlelo lokusebenza okuzenzakalelayo, ukwenza ilogo kube ngokwakho, namandla engeziwe.
I-Industrial Panel PC inikezela ngezinketho ezintathu zokukhweza eziguquguqukayo: udonga-okukhweziwe,{1}}okumile, kanye nokufaka imbobo ye-VESA. Ivumelana kalula nezimo ezihlukene zezimboni, yenza kube lula ukufakwa nokusetshenziswa kwendawo okusebenzayo.
Ilethela usekelo lokuphakelwa kwamandla embobo ye-Phoenix yokudluliswa kwamandla okungaguquki, okuthembekile{0}}okulungisa ukusethwa kwezintambo nokuvikela ukusebenza okungaphazamiseki kwephaneli ye-PC yezimboni, ngisho nasezimweni ezinzima kakhulu.
Ifika ifakwe ububanzi obuvumelana nezimo: DC (12V, 9-36V), HDMI, izimbobo ezimbili ze-COM, 2× USB 3.0, izimbobo ezimbili ze-LAN, ne-AUDIO. Izixazululo ze-interface ezifanisiwe zinikezwa ukunika amandla ukuxhumeka kwe-peripheral okushelelayo, ukuhlangabezana nezimfuneko zezimo ezihlukahlukene zezicelo zezimboni.
Imelana namazinga okushisa adlulele ukusuka -ku-20℃kuya ku-55 degree, ibekezelela kalula amakhaza kanye nokushisa okushisayo. Izinketho zesixhumi esibonakalayo ezenziwe ngendlela oyifisayo zinikezwa, zivikela ukusebenza okungami, okuthembekile kokusebenza kwezimboni kumafekthri angalawulwa noma ezindaweni ezingaphandle.
10-iphoyinti lokuthinta i-capacitive nokusabela okukhethekile kuvumela okuningi{2}}ukuthinta ukuthinta okunembile, ukuthepha okushesha, nokuswayipha okuwuketshezi{3}}okuletha umsebenzi osebenziseka kalula ukuze kuthuthukiswe ukusebenza kahle kokusebenza kwezimboni.
Ifaka isilinganiso se-IP65 esingangeni manzi futhi singangenisi uthuli, sigweme ukuchaphazeka kwamanzi, uthuli, nokungcola{1}}ivikela ukusebenza okungaguquki kwamaphaneli e-Industrial PC kuzilungiselelo zefekthri ezinokhahlo noma amasayithi ezimboni angaphandle.
Ifika ifakwe i-ESD eqinile (i-anti-static) ne-EMI (i-anti-i-electromagnetic interference) isivikelo. Igcina ukusebenza okuzinzile phakathi kokuphazamiseka kukagesi wezimboni, ivikela ukunemba kwedatha nokwethenjwa kwesistimu.
